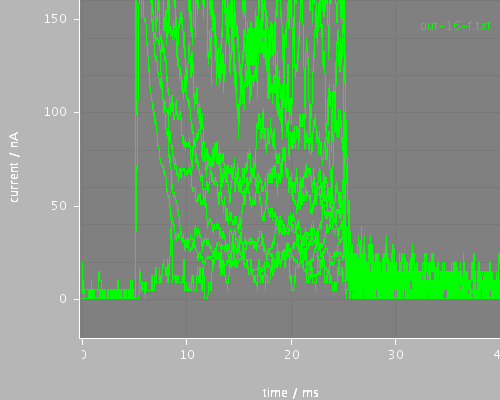

I-V curves for the same model as is used for mean variance analysis.

Total CPU time 1.286 seconds; at 15:12:29 Tue 4 Sep 2007

CompartmentsStochastic
channels / cpmts
Continuous
channels / cpmts

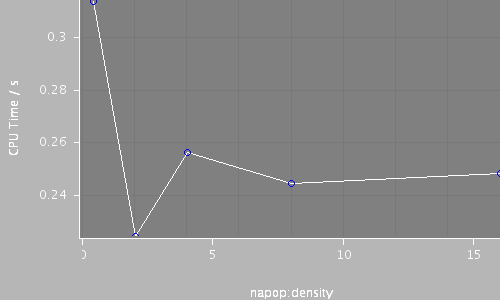

time/mstimestep/msnapop:densityCPU Time / s
15 / 10 / 040.00.010.40.314
125 / 10 / 040.00.0120.224
151 / 10 / 040.00.0140.256
1101 / 10 / 040.00.0180.244
1201 / 10 / 040.00.01160.248
